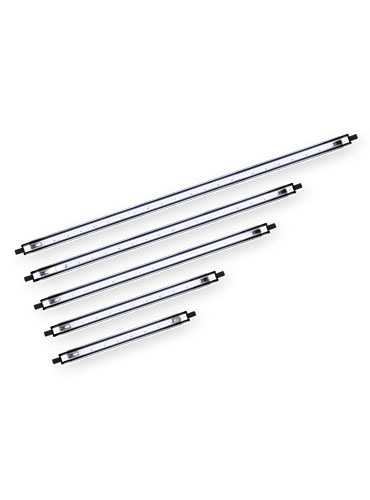

LED-based illumination system for marine aquariums
LED-based illumination system for marine aquariums inclusive of transformer, ON/OFF switch and acrylic lens
Designed for being installed on an existing T8 and T5 neon tube illumination system
Model
ALED MARINE S | M
Power W
10 | 15
Dimensions mm
16 x 39 x 437 | 16 x 39 x 550
Recommended tank surface cm
45 x 35 up to max 55 x 50 | 55 x 35 up to max 65 x 50
T5/T8 replacement
T8 15 W - T5 24 W | T5 24 W - T8 18/20W - T5 28 W
No. of LEDs per colour
42 white 14000 K | 63 white 14000 K
Cod.
037145 | 037146
A LED MARINE L | XL
20 | 25
16 x 39 x 740 | 16 x 39 x 849
75 x 35 up to max 85 x 50 | 85 x 35 up to max 95 x 50
T8 25 W - T5 35 W | T5 39 W - T8 30 W - T5 45 W
84 white 14000 K | 98 white 14000 K
037147 | 037148
A LED MARINE XXL
30
16 x 39 x 1047
105 x 35 up to max 120 x 50
T8 38 W - T5 54 W - T8 36 W
126 white 14000 K
037149
